Eclipse Chrome Shelving

£96
Ex. VAT
£115.20
Inc. VAT
Was £0
Ex. VAT
£0
Inc. VAT
Save
Product Code: 55994
Pay in 4 interest-free instalments. Choose at the checkout. Find out more.
local_shipping
Small order charge of £18 applies to orders under £545.00 Exc Vat
Delivery:
3/5 Working Days

Product Information

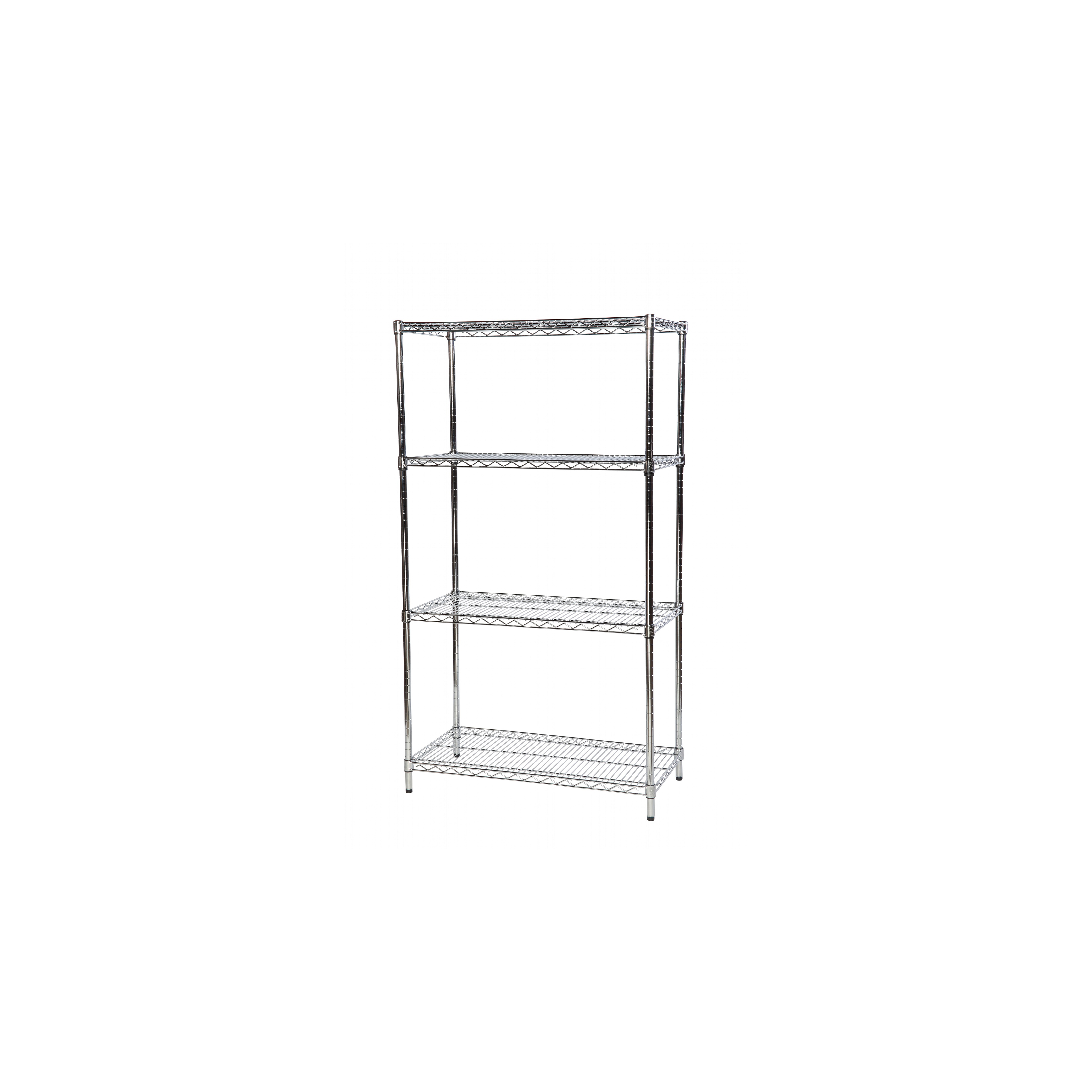

Eclipse Chrome shelving open-wire steel design allows for excellent airflow and light penetration. Strong and robust this chrome wire design has fully adjustable shelves at 25mm increments with shelf load capacities of up to 300kg.

This dry store chrome shelving is available in 87 different size combinations and you can reduce the costs of these storage racks and improve access by using add-on units. All units are fiitted with levelling feet as standard.

FREE DESIGN SERVICE - if you're not sure what to order then let us do the work for you - just send us a rough sketch of your room to sales@rh-products.co.uk and we will send you back a design layout together with a quotation, without obligatioin.

When ordering you must start with a Starter Unit and then you add Extension Units when you requiire more units joined on.

Starter Unit - has 4 upright posts and shelves as described.
Add-on Extension Unit - has 2 upright posts only as it connects at one end on to a Starter Unit

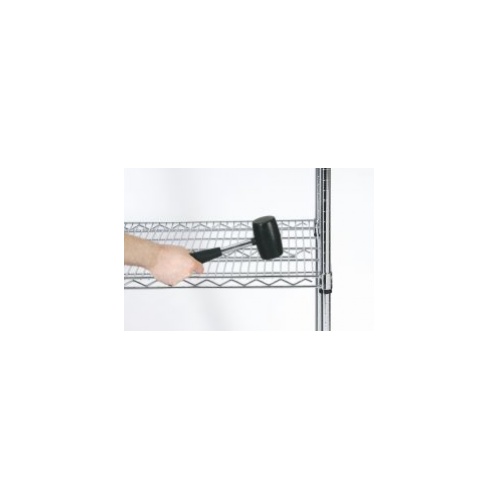

These cold room shelving racks are "Bolf Free", quick and easy to build ideally by using a rubber mallet and the innovative design reduces cost and improves access by using starter or add-on units. Starter unit consists of 4 Shelves and 4 Posts, Add On units consists of 4 shelves, 2 posts and 8 add-on clips.

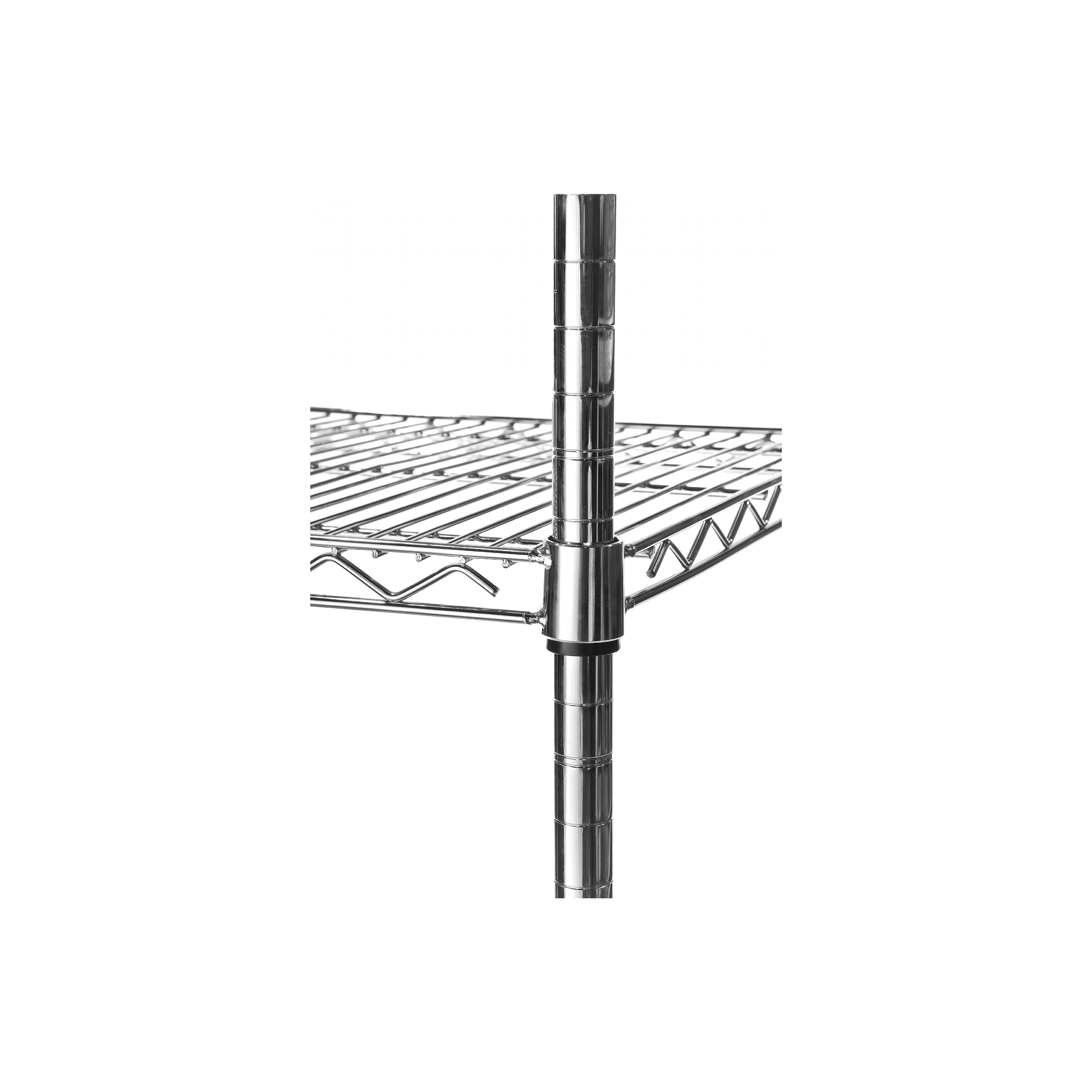

Additional Shelves for a starter unit - are supplied with 4 x black collars for fitting to the upright posts of a starter unit

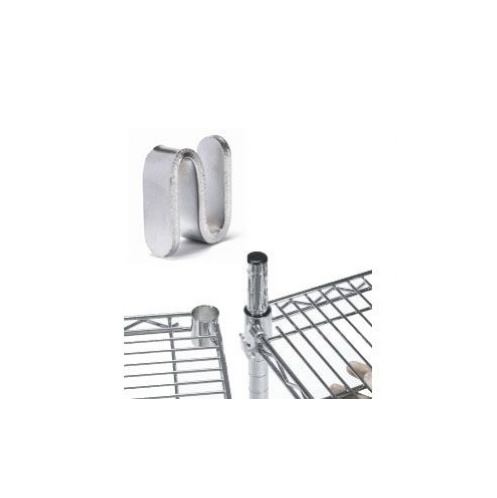

Additoinal Shelves for an Add on unit - you will need to order 2 x add on clips per shelf which fit onto the side of the existing shelves in the starter uniy. (see image).

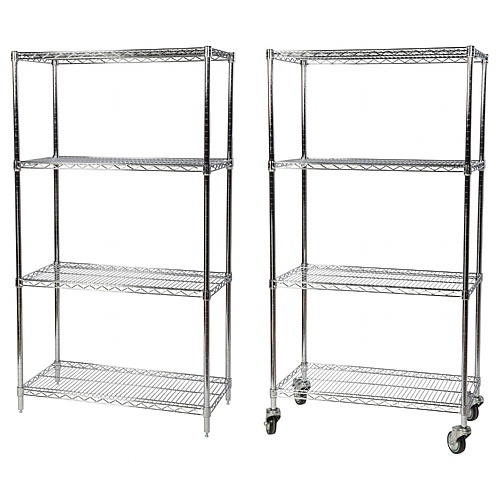

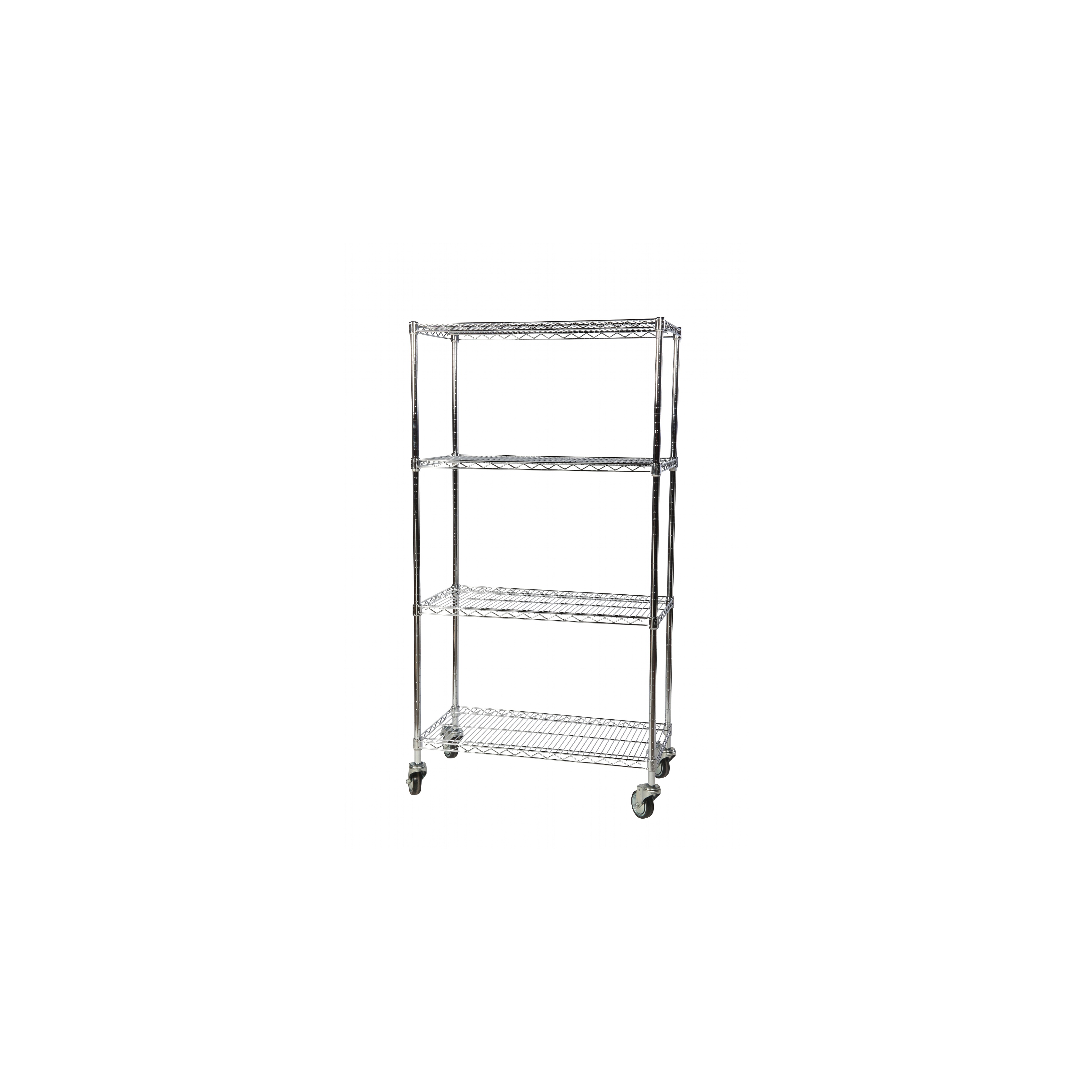

All units can be easily converted to a mobile unit by fitting a set of 4 swivel castors (2 braked). In addition, we have a huge range of accessories including utility rails, garment rails, shelf ledges and dividers on request. This chrome shelving conforms to NSF/ANSI standard 2 - food equipment, for use in dry storage.

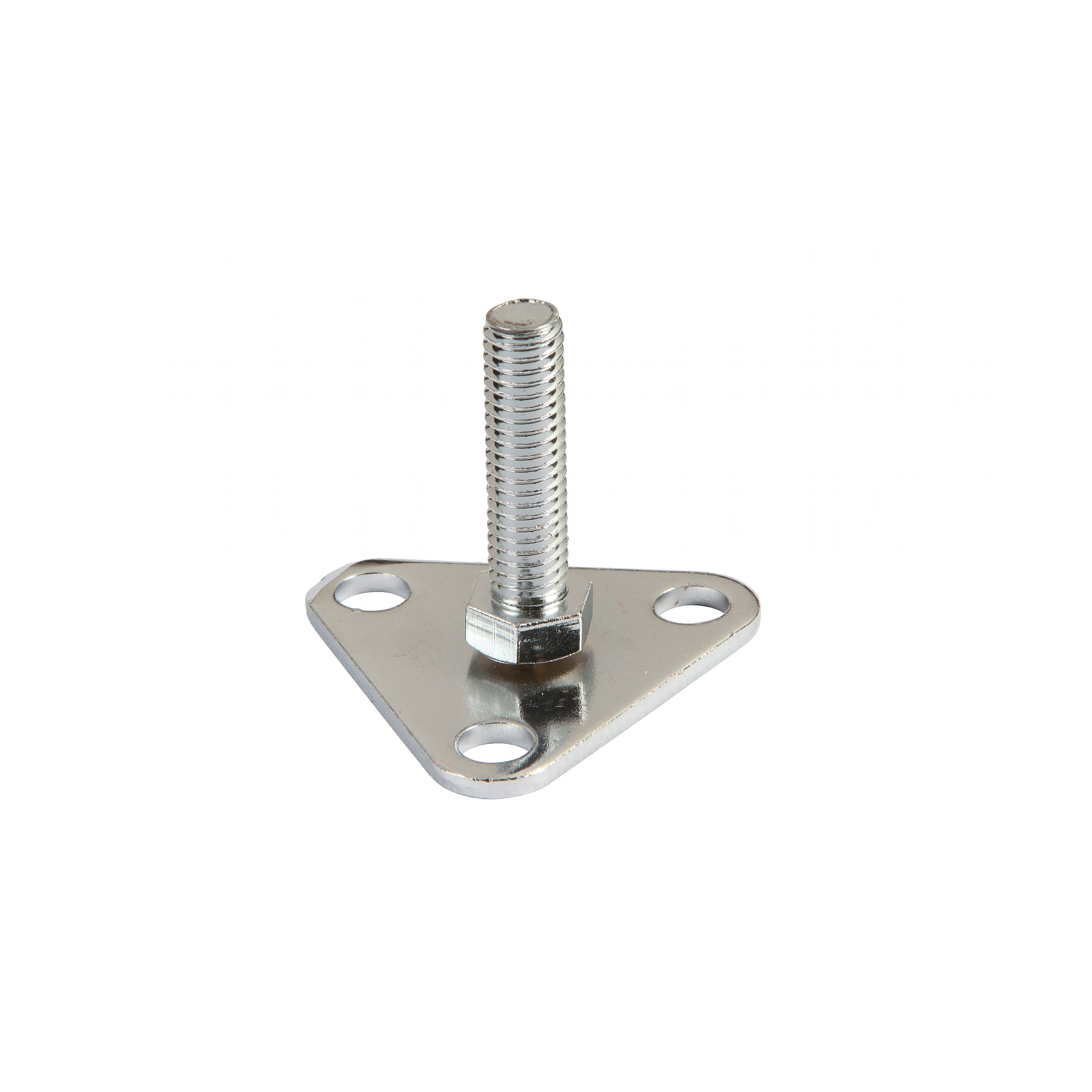

Accessories: Wall Fixing Brackets and Base Plate are also avaliable (without fixings)

Delivery tmes stated is subject to stock levels at time of ordering.
Sizes Available
Heights   1625, 1820, 2130mm
Lengths   610, 760, 915, 1070, 1220, 1370, 1520, 1820mm,
Depths   305, 355, 460, 610mm
75mm Castors   70kg cap (per unit 210kg)
100mm Castors   80kg cap (per unit 240kg)
125mm Castors   100kg cap (per unit 300kg)
