Midispan Longspan H/Duty Galvanised Racking up to 6m High

Inc. VAT
Was £0
Inc. VAT
Product Code: 65385
Pay in 4 interest-free instalments. Choose at the checkout. Find out more.
Small Order Charge of £10 applies to orders under £300 Exl Vat
5 working days

Product Information

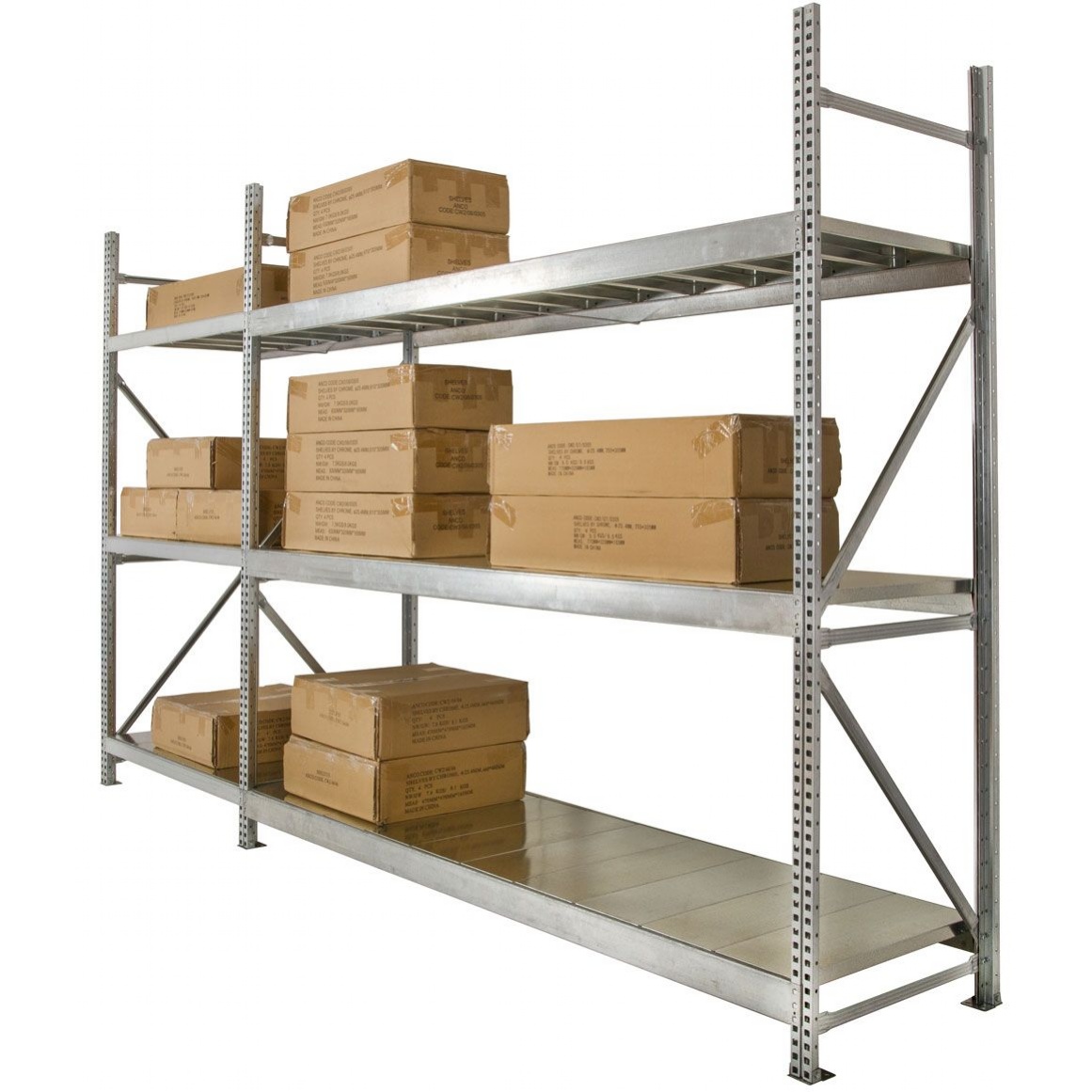

Midispan Longspan Heavy Duty Galvanised Steel Racking is ideal for the most demanding applications and environments. The profiles are designed in such a way to ensure there are no sharp edges when assembling or in use. Supplied as separate Frames and Beam Levels you can create to your own specification to suit your application.

This heavy-duty long-span steel racking is a very flexible system that is sold as individual items i.e.Frames and Shelf Levels which allows you to build a system that suits your specific requirements. It's easy to build and reconfigure and the beams adjust every 25mm. Available with galvanized uprights, Beams, and decking panels with 400-750kg shelf load and 4300-8800kg load cap.

This heavy-duty longspan racking system has a wide range of profiles and sizes which provides complete flexibility when designing your warehouse with frame heights up to 6000mm.

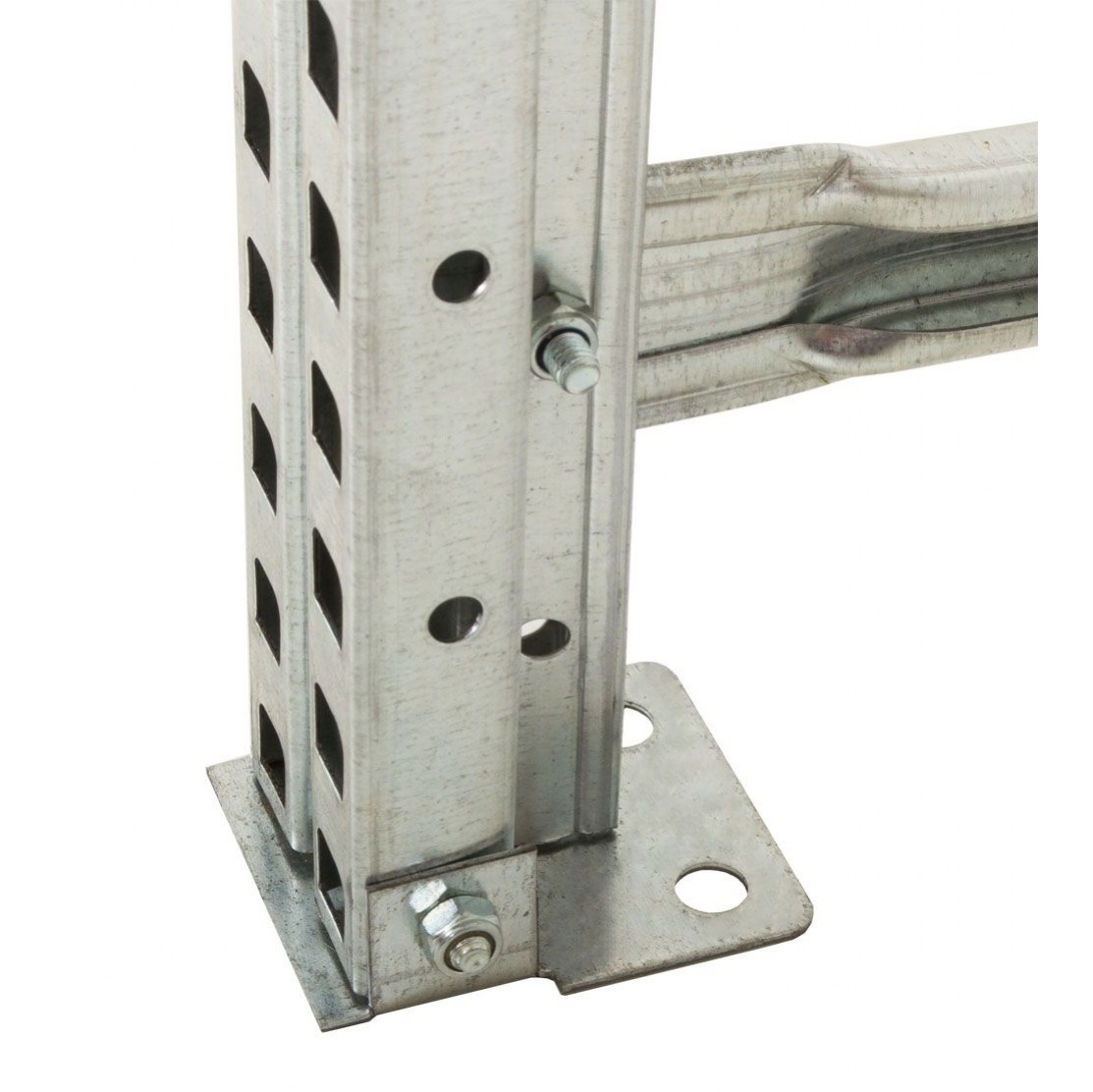

Frames - SOLD INDIVIDUALLY, price includes uprights, metal feet and all necessary bracings and fixings, choose from Heavy Duty (up to 4300kgs) or Extra Heavy Duty (up to 8800kgs)

Shelf Levels - choose from Heavy Duty (up to 1600mm wide) or Extra Heavy Duty (up to 2400mm wide) price includes a pair of beams, galvanized decking, safety pins and beam ties.

Please Note: When ordering Extra Heavy Duty frames you must also select Extra Heavy Duty Shelf Levels as they are a different steel profile to the Heavy Duty Frames and Heavy Duty Shelf Levels. You cannot mix and match.

Guaranteed for 5 years and delivered in 5 working days

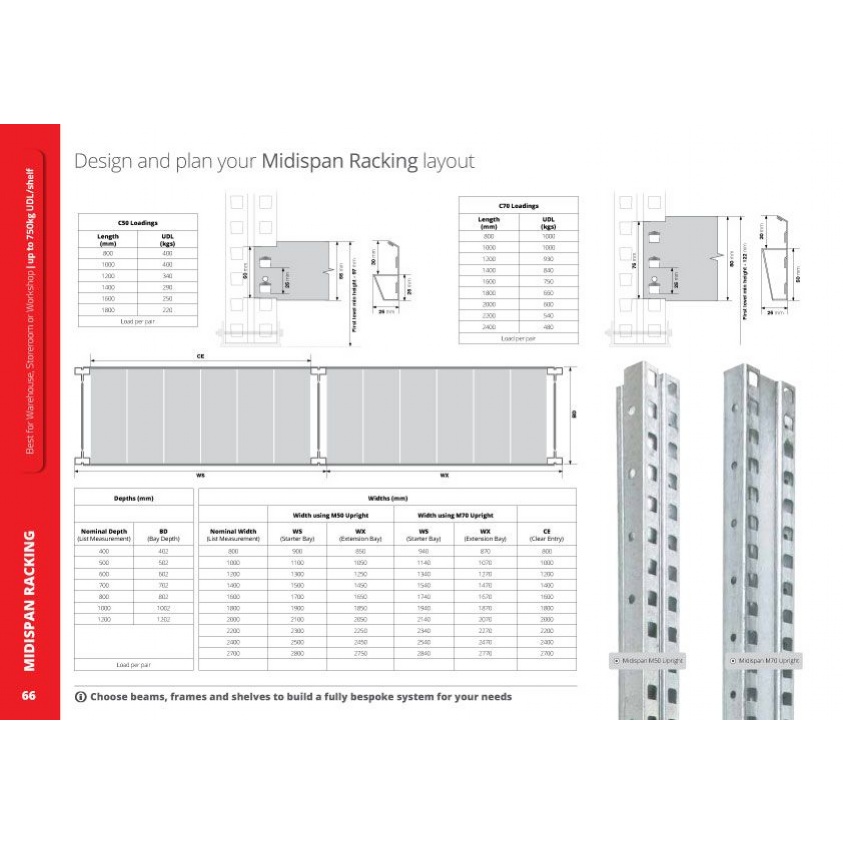

Please note, all dimensions stated are nominal shelf sizes and the overall bay / run dimensions may differ depending on the system ordered and / or your chosen layout ? please double check the relevant technical page before ordering or if you are unsure please contact us
Model   Cap up to kgs
Heavy Duty Racking   4300kgs
Extra Heavy Duty Racking   8800kgs
