Barrier Gate, Compact Swing Security Gate for Site Access

Product Information

Barrier gates like this compact swing model are ideal for controlling pedestrian or light vehicle access in industrial, commercial, and construction environments. Designed for durability and ease of use, it's a practical solution for securing entry points without requiring power or automation.

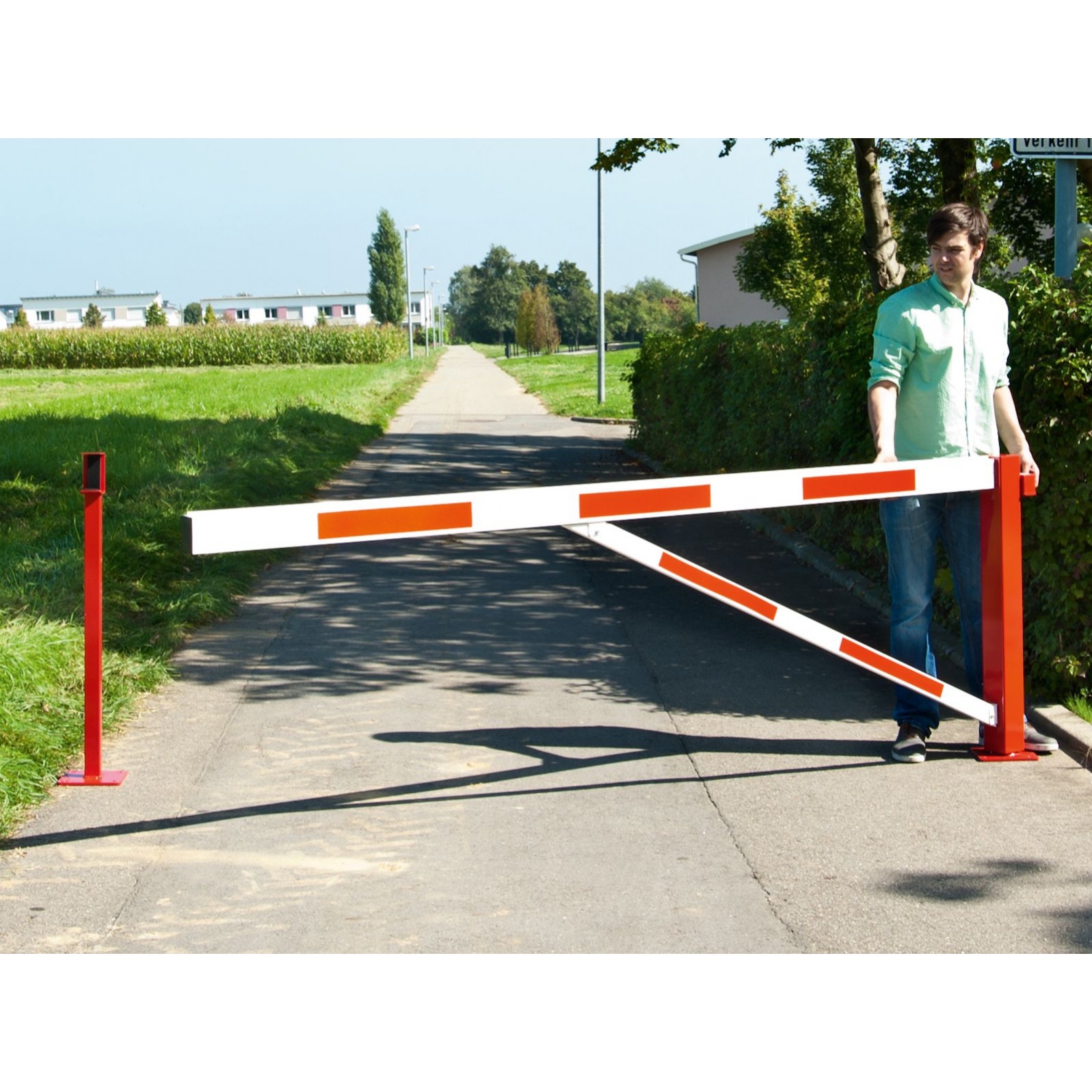

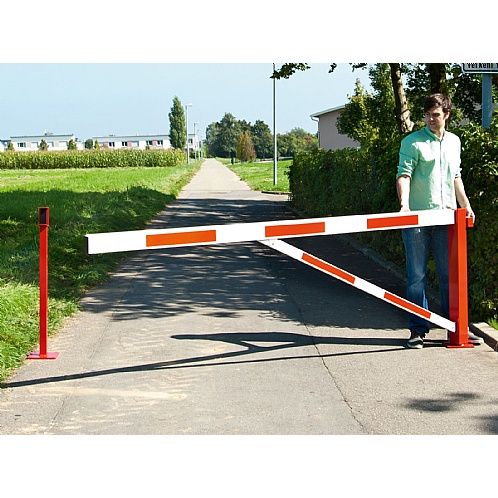

✅ Swing-Arm Barrier Design - Manual gate opens smoothly to restrict or allow access
✅ Compact Footprint - Ideal for tight spaces or narrow entry zones
✅ Welded Steel Frame - Built for strength and long-term reliability
✅ Germ Guard Active Technology - Antimicrobial powder coating for hygiene-sensitive areas
✅ High-Visibility Yellow Finish - Enhances safety and visibility in busy environments
✅ Bolt-Down Floor Fixings Included - Easy installation on concrete or solid surfaces
✅ Made to Order in the UK - Quality craftsmanship with fast turnaround
✅ Fast 5-Day Delivery - Quick dispatch for urgent site safety upgrades
✅ Non-Returnable Policy - Custom-built to specification; returns only if faulty or damaged

Perfect for forecourts, warehouse entrances, and restricted areas, this barrier gate provides a simple yet effective way to manage access and enhance site safety.

Specification:
Pivot Post - 100 x 100 x 1000mm high

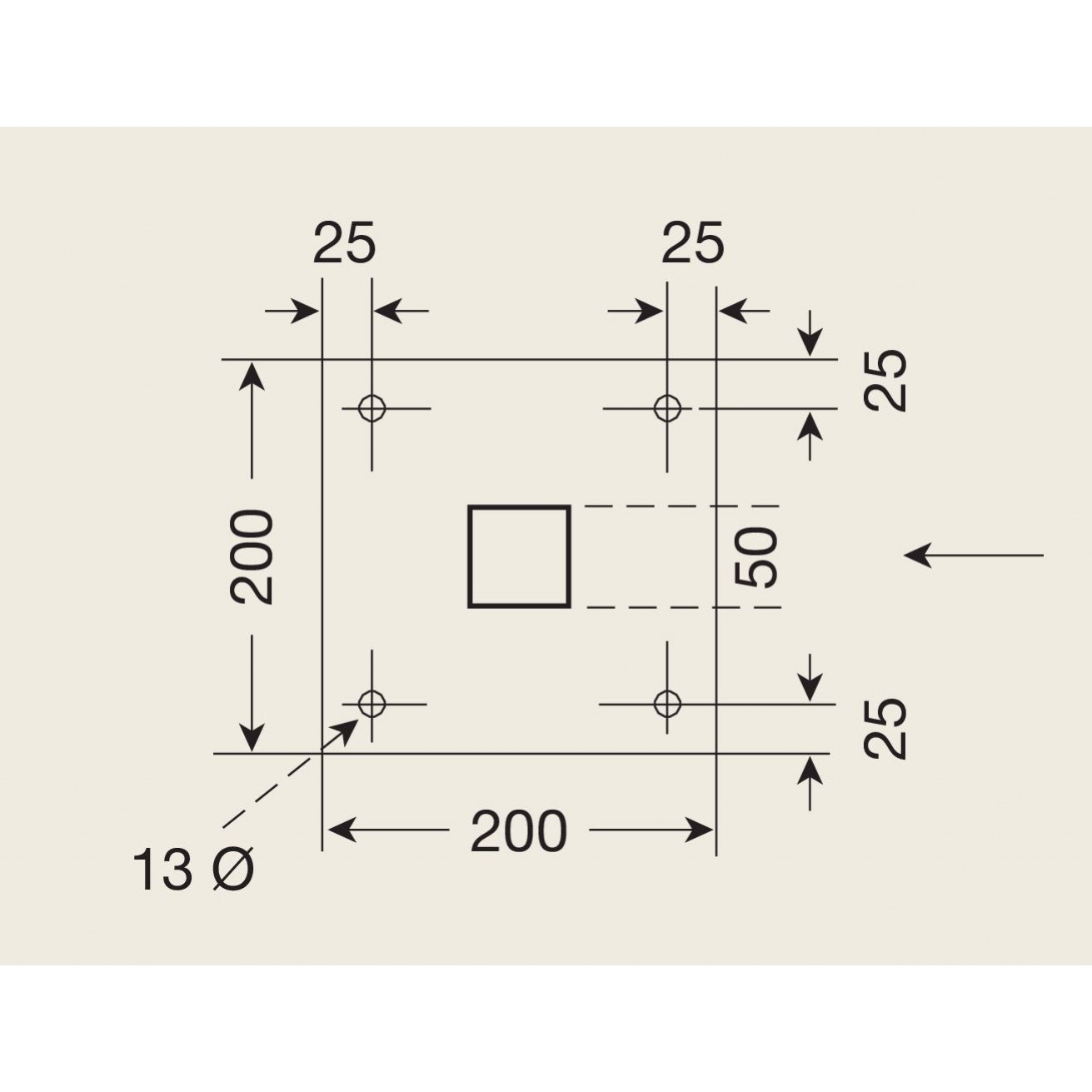

Base Plate - 200 x 200 x 10mm (drilled with 4 holes 13mm dia)
Support Posts- 20 x 50 x 1000mm high
Base Plate - 200 x 200 x 10mm
Alu Barrier Arm - 90 x 60mm
Alu Strut - 60 x 30mm

Description	O/all Width mm	Max Drive Through Width mm	Wgt
for surface fixing	2500	2170	55 Kgs
with two support	3000	2670	60kgs

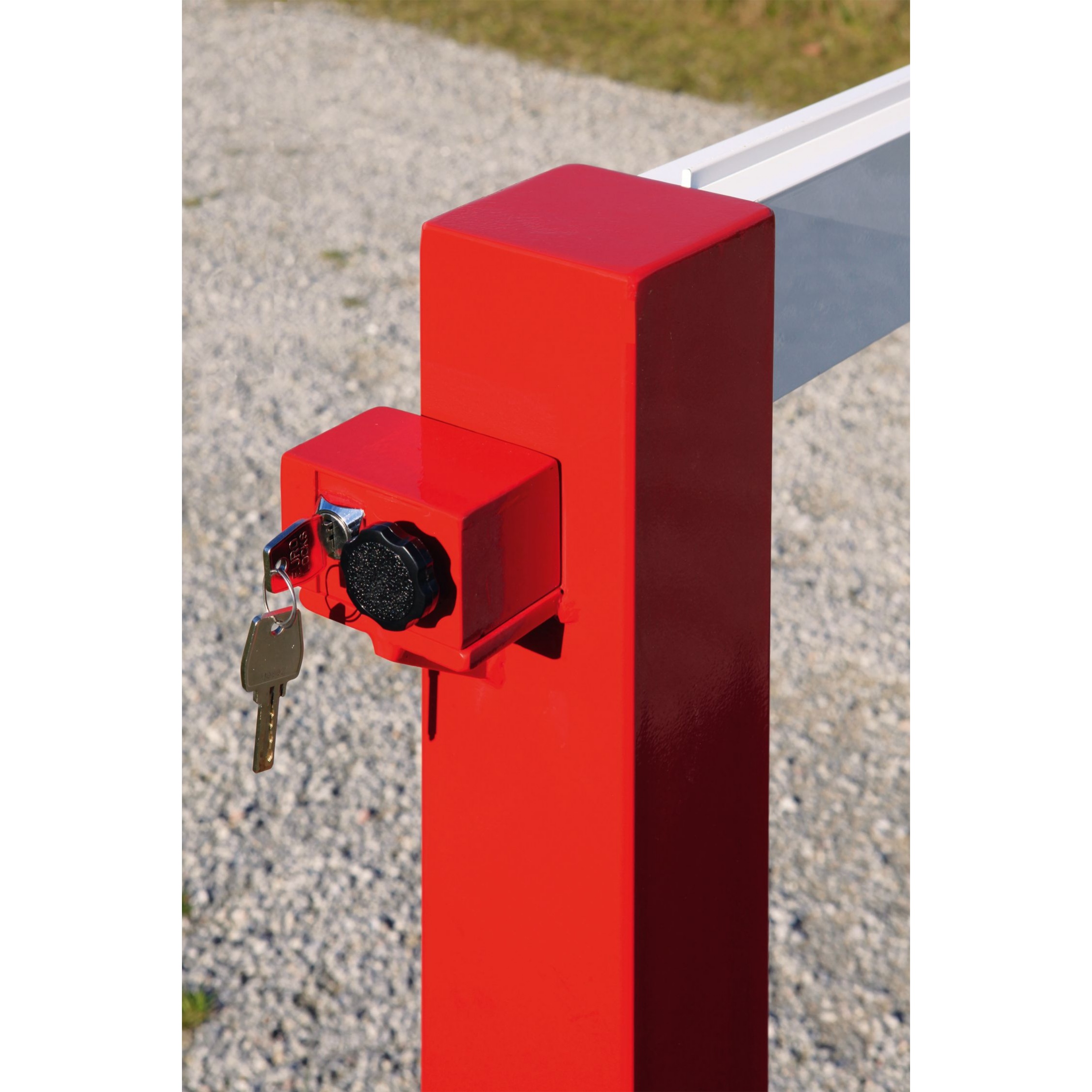

posts and cylinder	3500	3170	65kgs
lock and	4000	3670	70kgs
two keys	4500	4170	75kgs
