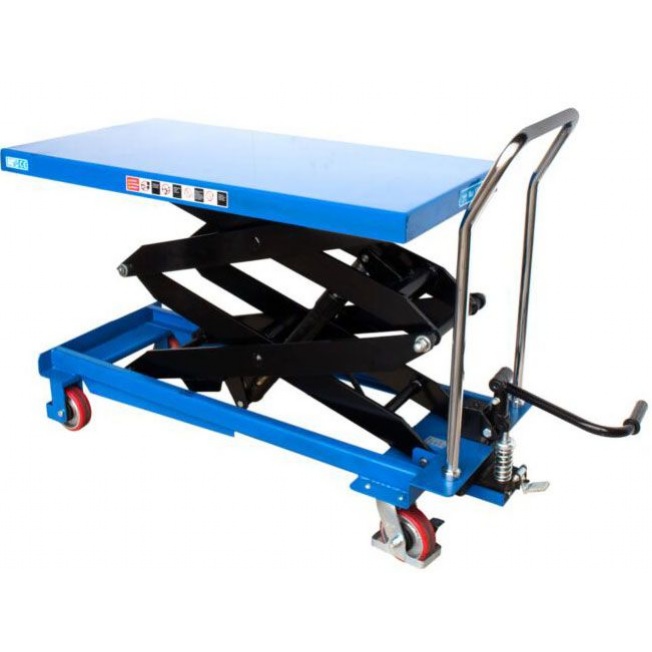

VULCAN Scissor Lift Tables, Single & Double Scissor, Pump Operated, EN 1570:2011

Product Information

The VULCAN Scissor Lift Tables are designed for safe, ergonomic lifting in workshops, warehouses, and production environments. Supplied in single or double-scissor configurations, these pump-operated units comply with EN 1570:2011 safety standards and offer reliable manual elevation and descent control.

✅ Available as single or double scissor units
✅ Complies with EN 1570:2011 safety standard
✅ Elevated by pump-action foot pedal
✅ Lowered via hand-operated release trigger (single scissor) or foot pedal (double scissor)
✅ Mobile on 2 fixed and 2 swivel braked castors with wheel guards
✅ Ideal for lifting, positioning, and assembly tasks
✅ Made to order - non-returnable once production begins
✅ Designed & manufactured in the UK

These lift tables are the go-to solution for improving operator comfort, reducing strain, and enhancing productivity in manual handling operations.

Pump Type	Platform Size mm /Kgs	Lowered Ht mm	Max Lift Ht mm	Wheels mm
Single	700 x 450/ 150kg	255	720	100 x 25
Single	850 x 500/ 300kg	280	900	125 x 40
Single	820 x 500/ 500kg	280	900	125 x 40
Double	910 x 500/ 350kg	350	1300	125 x 40
Double	910 x 500/ 500kg	360	1500	125 x 40
Double	1200 x 610/ 800kg	450	1500	125 x 40
Double	1200 x 610/ 1000kg	500	1700	125 x 40
