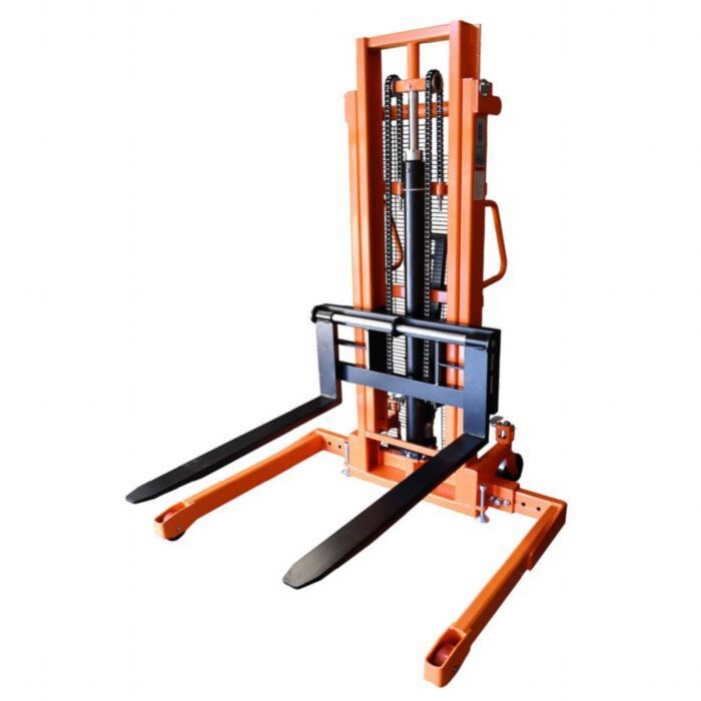

Manual Hydraulic Straddle Stackers, Adjustable Forks, 1000kg, EN 1757-1 Compliant

Product Information

These Manual Hydraulic Straddle Stackers are designed for safe, controlled lifting of pallets and containers in warehouses, workshops, and logistics environments. Featuring adjustable forks and a straddle base, they offer flexible handling for various pallet sizes and conform to EN 1757-1 safety standards.

✅ Load capacity: 1000kg
✅ Lift height options: 1600mm, 2500mm, or 3000mm
✅ Fork Length 915mm
✅ Width over Forks 210 to 800mm
✅ Load Centre 500mm
✅ Manual adjustable fork straddle design for varied pallet widths
✅ Controlled lifting via hydraulic pump
✅ Mobile on two swivel 180mm rear castors and two fixed 75mm front rollers
✅ Conforms to CE Standard EN 1757-1
✅ Ideal for stacking, loading, and material transfer tasks
✅ Made to order - non-returnable once production begins
✅ Designed & manufactured in the UK

These stackers are perfect for environments requiring precise manual lifting and adjustable fork spacing for flexible pallet handling.

Lift Height mm	H x W x D mm
1600	2020 x 1100/1370 x 1420
2500	1770 x 1100/1370 x 1420
3000	2020 x 1100/1370 x 1420

-
