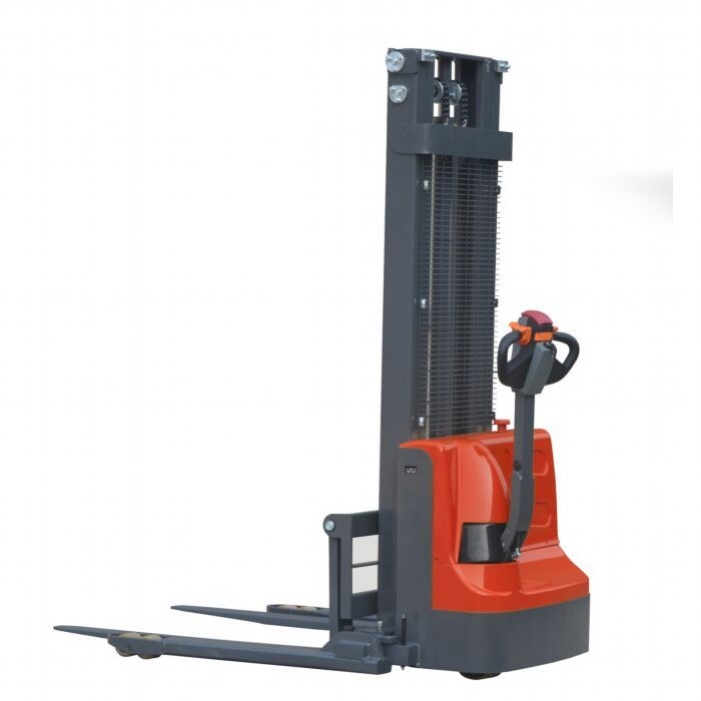

VULCAN Fully Powered Straddle Stacker, 1200kg, Lift to 3200mm

Product Information

The VULCAN Fully Powered Straddle Stacker is engineered for high-performance pallet handling in industrial environments. With a 1200kg load capacity and lift heights up to 3200mm, it features a duplex mast, offset tiller, and four-wheel support for safe, stable stacking at height. Powered by maintenance-free batteries with a built-in charger, it ensures quiet, efficient operation. Fully CE marked and plated, and compliant with EN 1757-1, this stacker is built for durability and operator comfort.

✅ Load capacity: 1200kg (1500kg & 2000kg models available - call for details)
✅ Lift heights: 1600mm, 2000mm, 2500mm, 3000mm, 3200mm
✅ Fork Length 1150mm
✅ Fork Width 570mm
✅ CE marked & plated - conforms to EN 1757-1
✅ Duplex mast for smooth lift and travel
✅ Offset tiller for clear forward visibility
✅ Turning radius: 1485mm
✅ Four-wheel support for high-position stability
✅ Battery: 2 x 12V / 85Ah (upgrade to 2 x 12V / 106Ah available)
✅ Built-in charger & battery discharge indicator with auto lift cut-off
✅ High-efficiency hydraulic pump - low noise, fast lift
✅ Compact, ergonomic design for enhanced operator performance
✅ Made to order - non-returnable once production begins
✅ Designed & manufactured in the UK
✅ 7-Year Guarantee - 7 years on chassis, 2 years on parts

Lift Heght	Lowered Mast Height mm	Raised Mast Height mm
1600	2099	2099
2000	1580	2549
2500	1830	3049
3000	2080	3549
3200	2230	3849
