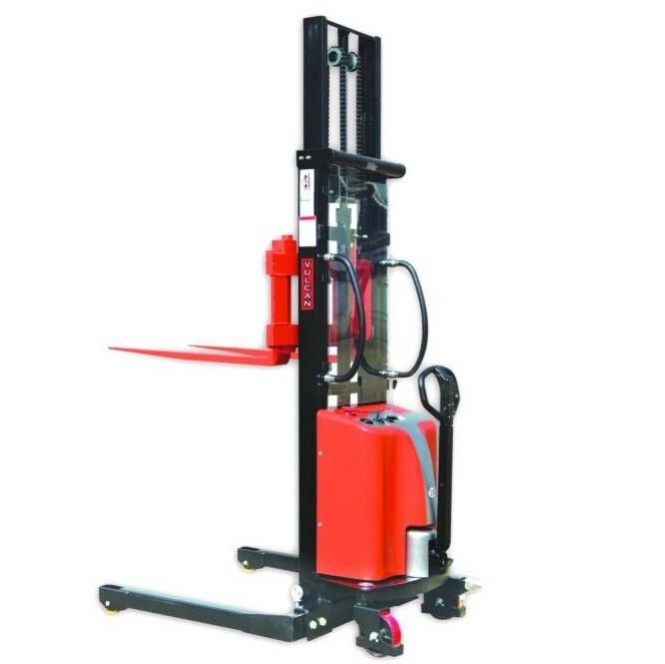

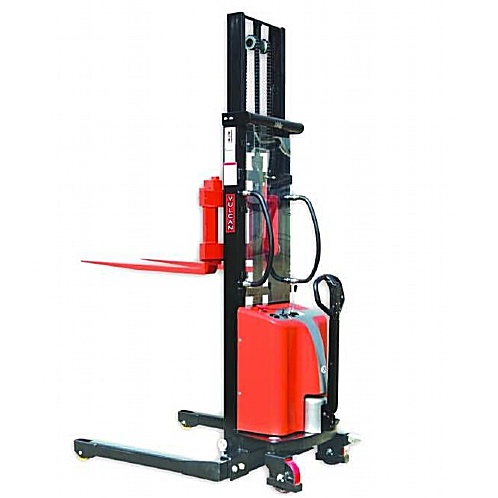

VULCAN Semi Electric Straddle Stacker, 1200kg, Adjustable Forks, EN 1757-2

Product Information

The VULCAN Semi-Electric Straddle Stacker is designed for safe, efficient pallet handling in warehouses, workshops, and logistics environments. Featuring adjustable forks and straddle legs, this unit offers manual push with electric lift, multiple lift height options, and full compliance with EN 1757-2 safety standards.

✅ Load capacity: 1200kg
✅ Lift height options: 1600mm, 2000mm, 2500mm, or 3000mm
✅ TUV Certified and conforms to EN 1757-2
✅ Manual push / electric lift operation
✅ Tandem lift chains with full guarding
✅ Brake, steering, and pulling handle for easy control
✅ Adjustable forks and straddle legs (overall width: 1100 x 1380mm)
✅ Adjustable straddle legs are suitable for most pallets
✅ Fork width adjustable 220 to 850mm
✅ Fork length: 915 or 1150mm
✅ Lowered Fork Height 70 or 75mm
✅ Load centre: 600mm
✅ Turning radius: 1350mm
✅ Mobile on 180mm steering wheels with foot guards and 100mm load wheels
✅ Product Code 81246 Lowered Mast Height: 1790mm
✅ Product Code 81248 Lowered Mast Height: 2040mm
✅ Powered by a 12V 150Ah battery with a built-in automatic charger
✅ Heavy-duty 1500W electro-hydraulic power pack
✅ 7-Year Guarantee, 7 years on chassis, 2 years on parts
✅ Made to order - non-returnable once production begins
✅ Designed & manufactured in the UK

This stacker is ideal for operations requiring flexible pallet access, electric lifting, and compact maneuverability, with long-term durability backed by a comprehensive guarantee.

Please note: Appropriate facilities will be required for unloading this item.on delivery.

Lift Heght	Fork Length mm	Lowered Fork Height mm	H x L mm
1600	915	75	2020 x 1550
2000	915	75	2020 X 1550
2500	1150	70	1854 X 1800
3000	1150	70	2104 x 1800
